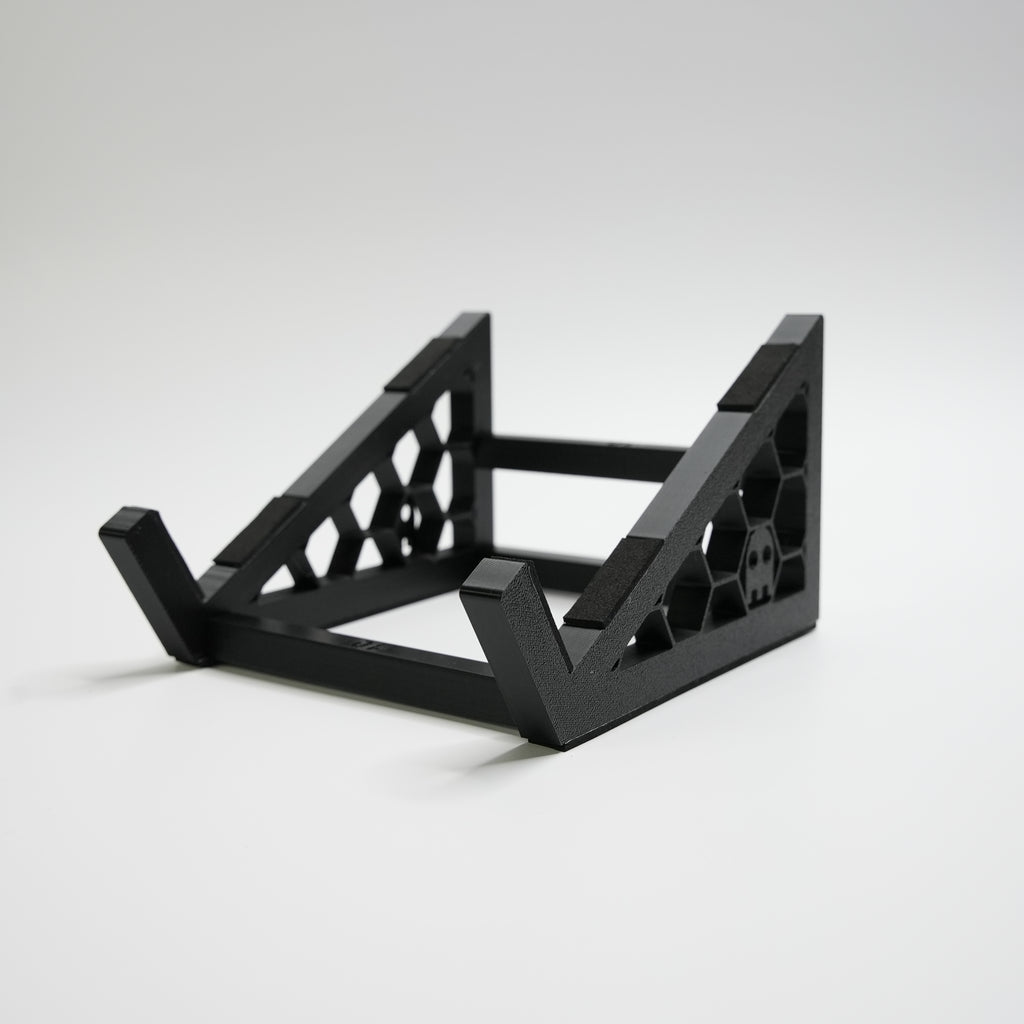

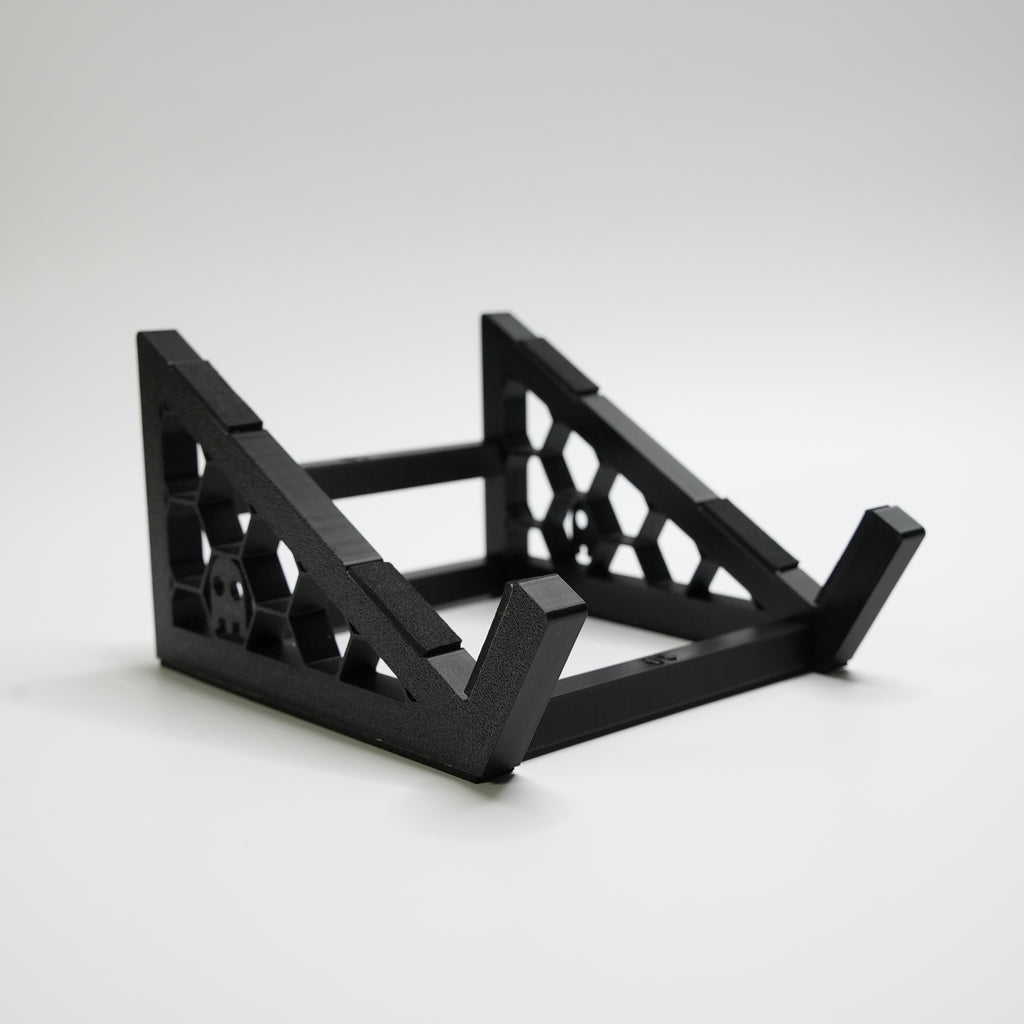

Universal Stand Lite S10

The Universal Stand Lite S10 is the most compact configuration in the USL series. It is a stable, specialized desktop stand engineered to elevate and angle small electronic music equipment, such as compact controllers, effects pedals, audio interfaces and desktop synthesizers. It provides an immediate 30-degree ergonomic tilt while maintaining a minimalist footprint.

🔩 Technical Specifications and Construction

• Fixed Ergonomic Angle: Provides a comfortable and functional 30-degree tilt for optimal visibility and efficient access to controls (pads, knobs, and displays).

• Dimensions (USL-S10):

  • Rod Length (Width): 10 cm

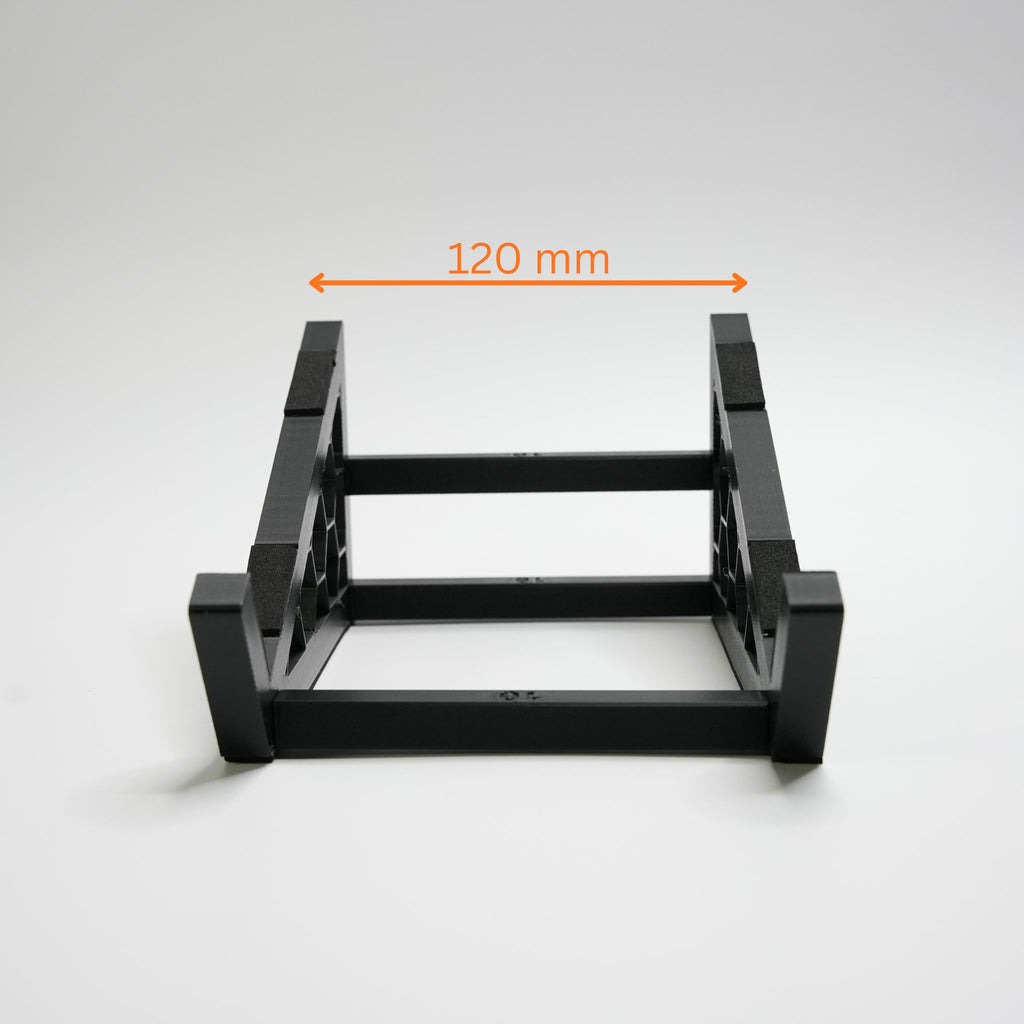

  • Total Width: 12 cm (10 cm rod + 2 cm total side panel width)

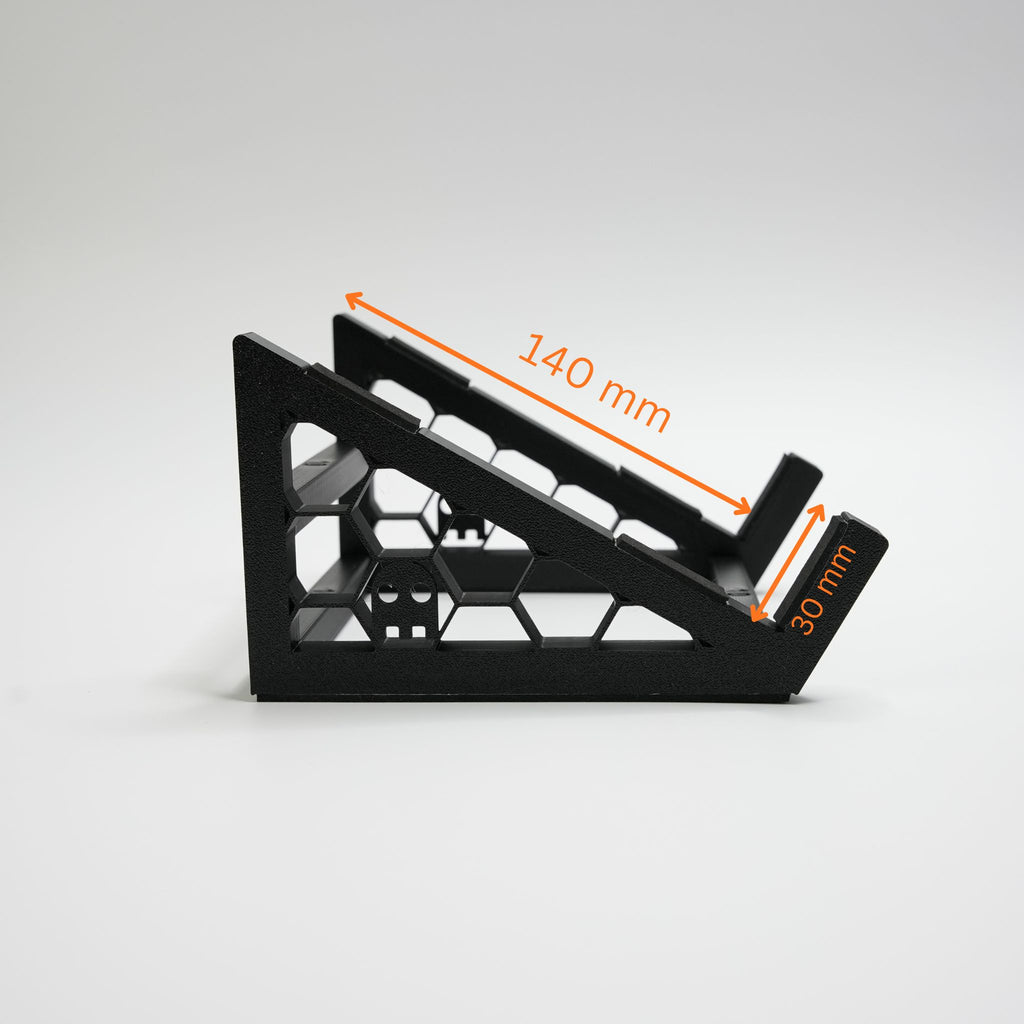

  • Holding Depth (Standard): 14 cm (derived from the 140 mm side panel length).

  • Max Height: 84 mm (at the highest point).

• Core Components: Built from two Triangle-Shaped Side Panels and three 10 cm Connection Rods for high rigidity and easy disassembly.

• Material: Durable, lightweight PETG material, optimized for reliable desktop use.

🌐 Modular System & Versatility

The Lite S10 utilizes a fully modular design, allowing users to customize its size or integrate it into larger custom systems:

• Width Customization: The standard 10 cm rods can be easily swapped with optional rod lengths (15 cm, 20 cm, or 25 cm, sold separately) to perfectly match the width of different devices.

• Depth Expansion: For equipment deeper than 14 cm, the stand is compatible with the Extension Side Panel (sold separately).
